processor |
Intel Gen4 i7/i5/i3 series processors |
||
|
Southbridge |
HM86 Chipset |
||
|
memory |
technology |
Single channel DDR3L 1600MHz |
|
|
|
maximum capacity |
8GB |
|
|
|
Memory slot |
1*204Pin DDR3L SO-DIMM(Non-ECC) |
|
|

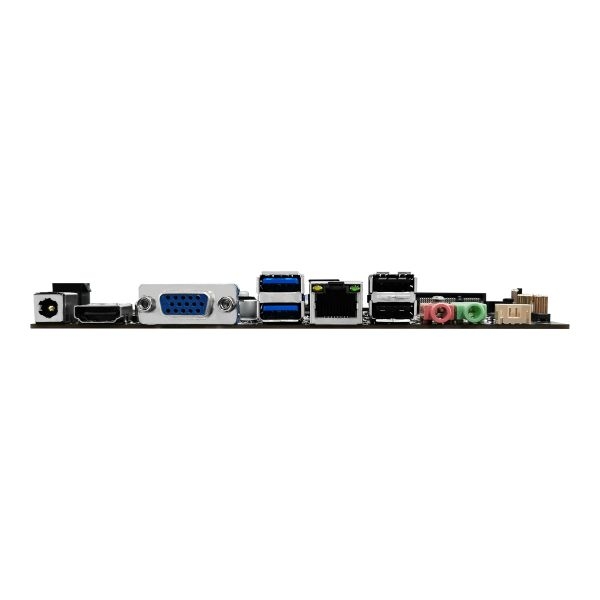

Post I/O |
DC interface |
1 standard 2.5mm DC power socket |
|
|
|
HDMI |
Standard D socket, supporting HDMI1.2. |
|
|
|
VGA |
Standard DB15 socket |
|
|
|
Ethernet |
1 Realtek Gigabit NIC |
|
|
|
Audio |
1 (Line-out, Mic-in) |
|
|
|
USB port |
4 (2 USB 3.0, 2 USB 2.0) |
|
|
Internal connector |
USB port |
5 (one FUSB can transfer out two USB2.0 interfaces); |
|
|
|
serial port |
1 (serial port only supports RS232 mode) |
|
|
|
power amplifier |
1*4Pin 2.0mm white socket, which can support up to two 5W2 speakers. |
|
|
|
JVGA |
Supports 1*12Pin pins (VGA and JVGA can only be selected) |
|
|
|
JHDMI interface |
Supports 2*8Pin pins (HDMI and JHDMI can only be selected). |
|
|
|
LVDS/EDP |
Support single (dual) channel 18(24) bits, (LVDS and EDP can only be selected) |
|
|
|
Mini-PCIe |
1 Mini PCIe slot with WIFI support. |
|
|
|
MSATA |
1 Mini PCIe slot with SSD hard disk support. |
|
|
|
serial ata |
1 7Pin SATA interface, supporting SATA 2.0 |
|
|
|
PWR interface |
1 standard 2x2 Pin power socket |
|
|
Watchdog |
output |
system reset |
|
|
|
space |
Programmable for 1-255 seconds |
|
|
power consumption |
Maximum power |
Standby power consumption: 15.2W Full load power consumption: 85.5W |
|
|
environment |
temperature range |
working environment |
Storage environment |
|
|
|
Temperature:-10 ~ 60℃ Humidity: 5%~95% |
Temperature: -40~70℃ Humidity: 5%~95% |
|
DC power supply |
DC12V~19V power input |
||
|
Physical size |
measure |
170 mm x 170 mm |
|
