Motherboard chip

Intel Q270

CPU

Intel 6th/7th/8th/9th Generation CPU

Optional: I3-8100, I5-9400, I7-9700, etc.

memory

2*DDR4 DIMM, 2666MHz/ maximum memory support 32G.

Cunzhu

1* M.2 slot (NVME/NGFF protocol); 3*SATA 3.0 6Gb/s interface

Display interface

1*HDMI1.4 interface, 1*VGA interface

network

1*RJ45 interface /1*WIFI interface

Network card chip

Realtek gigabit network card chip

PCIE slot

1*PCIE 3.0 X16 slot; 1*PCIE X1 slot

audio frequency

1*Line out； 1*Mic In； 1*Line In； 1*F_Audio built-in pin

Audio chip

Realtek HD audio chip

serial port

1*COM

PS/2 interface

1*PS/2 keyboard and mouse

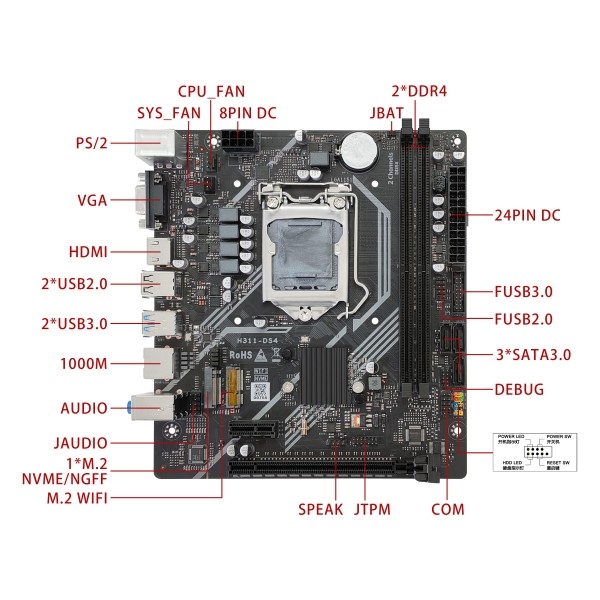

Usb interface

Rear interface: 2 * USB 3.0; 2*USB2.0

Built-in pins: 1 set of USB2.0 pins (2 USB2.0 ports can be extended);

1 set of USB3.0 pins (2 USB3.0 ports can be expanded);

Functional pin

1*FPANEL panel pin; 1*4Pin buzzer pin; 1*4Pin CPU fan; 1*3Pin SYS fan; 1*TPM pin

Power input

24Pin+8Pin ATX power socket

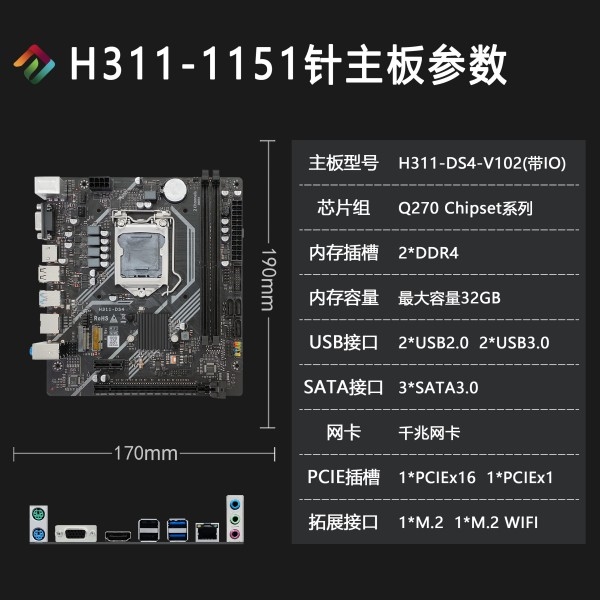

product size

170 x 190mm x 4L;

Working temperature

-10℃~60℃

Working humidity requirements

10%~90% without condensation

Storage temperature

-25℃~70℃

power consumption

Standby power consumption: 20~45W Full load power consumption: 100~200W (for reference only)

other

1*JBAT
