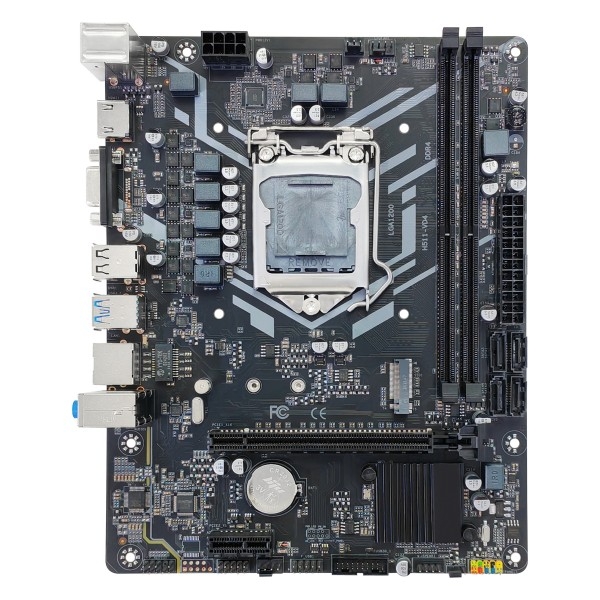

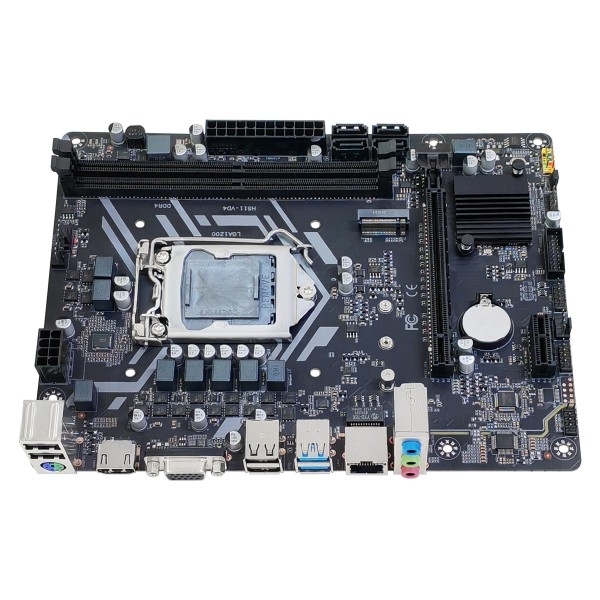

Motherboard chip

Intel H470

CPU

Support LGA1200 slot-10th/11th generation processors:

Supports Intel® Core TM, Pentium ®Gold and Celeron processors.

memory

2*DDR4 DIMM slot, supporting up to 64GB；; Support DDR 4 2133/2400/2666/2933/3200mhz (Max).

memory function

1* M.2 NVME slot (gen3); 4*SATA 3.0 interface

Display interface

1*HDMI 2.0 interface, 1*VGA interface

network

1*LAN interface (Realtek 8111H Gigabit network card chip)

PCIE slot

1*PCIE X16 slot (Gen3); 1*PCIE X1 slot

audio frequency

1*Line out； 1*MIC In； 1*Line In； 1*F_Audio built-in pin (Realtek ALC887 HD audio chip)

PS/2

Support PS/2 keyboard or PS/2 mouse (2-in-1 interface)

Usb interface

IO interface: 2*USB3.0, 4 * USB 2.0;

Built-in pins: 1 set of FUSB1 pins (2 USB2.0 ports can be extended);

1 set of FUSB30_1 pins (2 USB3.0 ports can be extended);

Functional pin

1*FPANEL panel pin; 1*4Pin buzzer pin; 1*4Pin CPUFAN； 1*3Pin SYSFAN2； 1*4Pin SYSFAN1

Power input

24Pin+8Pin ATX power socket

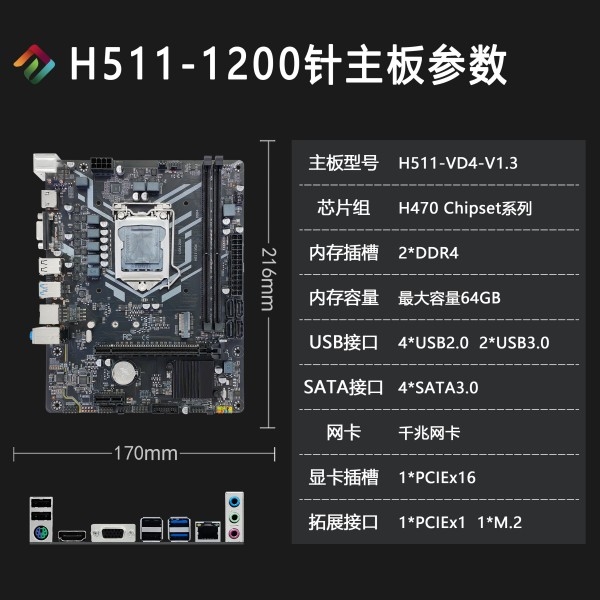

product size

M-ATX motherboard specification, 170 x 216.19 mm x 4L

Working temperature

-10℃~60℃

Working humidity requirements

10%~90% without condensation

Storage temperature

-25℃~70℃

power consumption

Standby power consumption: 21~25W Full load power consumption: 120 ~ 150w ~ (for reference only)

(If you want to install hardware equipment with high power consumption, please use a high-power power supply.)

other

2*5Pin JLPC interface; 1*JCMOS1 pin
