processor

Support LGA2011-0 pin series processors

Southbridge

H61 Chipset series

memory

technology

Dual-channel DDR3 1066/1333/1600/1866MHz

maximum capacity

128GB

Memory slot

4 * 240 PIN  ECC/DDR3

Post I/O

USB port

6 USB 2.0

Audio

1 (Mic-in, Line-out, Line-in)

PS/2

1 KB interface and 1 MS interface.

Ethernet

1 Realtek Gigabit NIC

Internal connector

USB 2.0

4 (one FUSB can transfer out two USB 2.0 interfaces);

JLPC

1 x 2x5Pin pin

PCIe

2 (1 PCIe x16；; 1 PCIe x1)

SATA

4 (SATA2.0)

ATXPWR interface

1 standard 1x8PIN power socket; 1 standard 1x24PIN power socket

JAudio

1 x 2x5Pin pin

M.2 interface

1 (supporting NVME protocol)

FAN

1 *3PIN SFAN; 1 x 1*4PIN CFAN

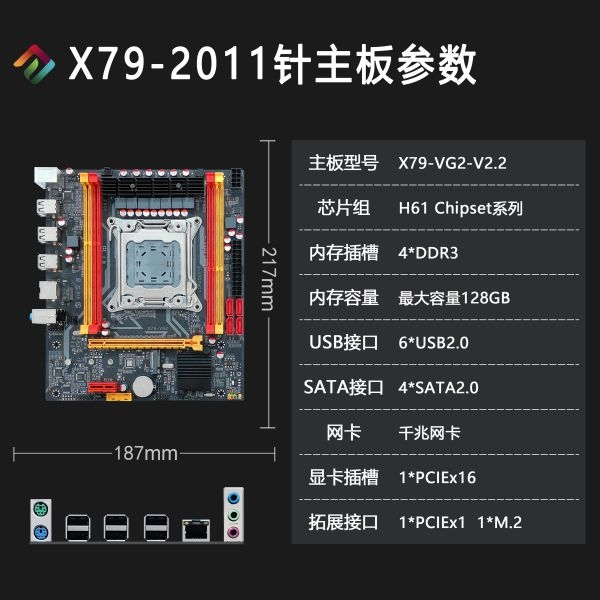

Physical size

measure

187 mm x 217 mm
