processor

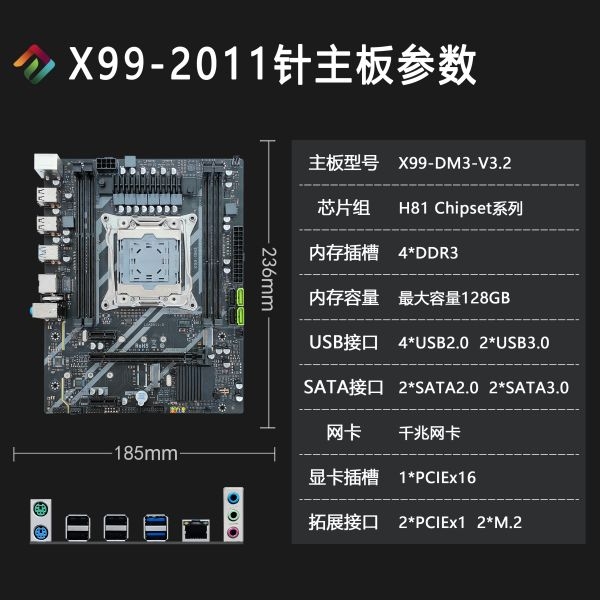

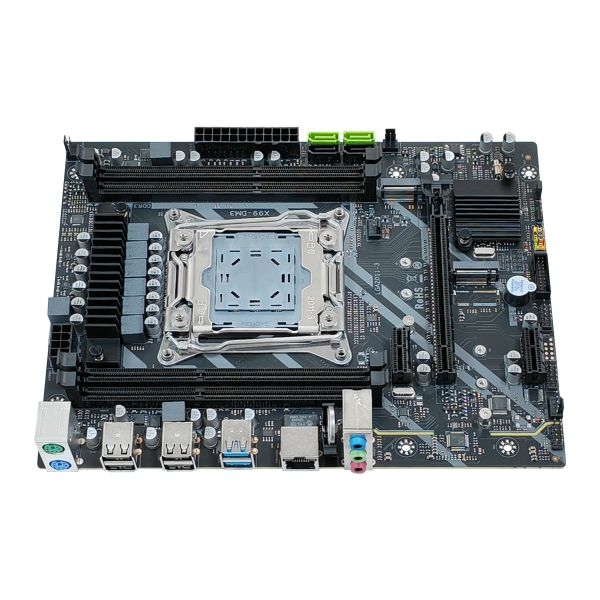

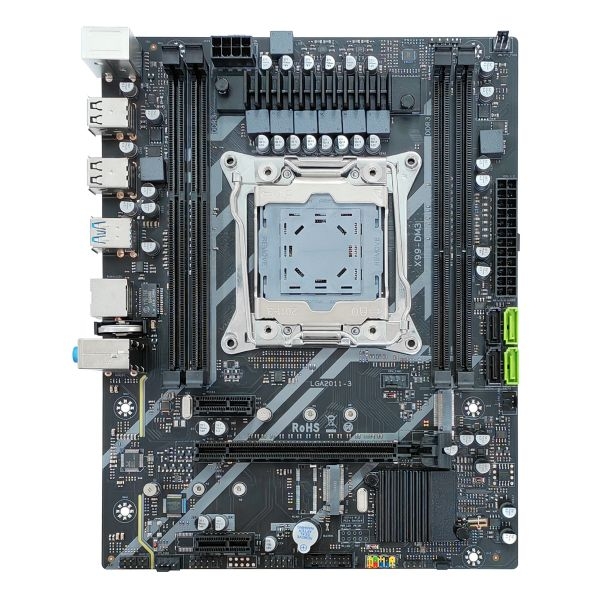

Intel Xeon E5 LGA2011-3 Pin Series Processor

Southbridge

SR17B Chipset series

memory

technology

Quad-channel DDR3 1066/1333/1600/1866MHz

maximum capacity

128GB

Memory slot

4 * 240 PIN  DDR3

Post I/O

USB port

2 USB 3.0；; 4 USB 2.0

PS/2

1 KB interface and 1 MS interface.

Audio

1 (Mic-in, Line-out, Line-in)

Ethernet

1 Realtek Gigabit NIC

Internal connector

USB 2.0

2 (one FUSB can switch out two USB 2.0 interfaces);

USB 3.0

2 (one FUSB can switch out two USB 3.0 interfaces);

JLPC

1 x 2x5Pin pin

CFAN

1 4Pin pin

SFAN

3 (1*4Pin pin+1*3Pin pin)

PCIe

3 (1 PCIe x16；; 2 PCIe x1)

ATXPWR interface

1 standard 1x8PIN power socket; 1 standard 1x24PIN power socket

Jaudio

1 x 2x5Pin pin

SATA

4 SATA interfaces

M.2

2 PCs (1 PCIe protocol (Gen3*4)+1 SATA protocol)

environment

temperature range

working environment

Storage environment

Temperature: 0 ~ 50 C Humidity: 5%~95%

Temperature:-20 ~ 70 C Humidity: 5%~95%

Physical size

measure

185MM x 235MM
