Motherboard chip |
B85 |
|
CPU |
Intel Xeon E5 LGA2011-V3 pin CPU (with DDR3 memory controller) |
|
|
For example: E5-2629v3/2666v3/2673v3/2676v3/2678v3/2696v3/2684v4/2696v4, etc. |
|
memory |
4*DDR3 DIMM quad-channel, 1066/1333/1600/1866MHz(MAX), with maximum support of 128G (32G*4). |
|
Cunzhu |
2*M.2 slot (NVME protocol: pcie 3.0x4); 6*SATA interface (SATA3.0*4+SATA2.0*2) |
|
Display interface |
/ |
|
network |
1*RJ45 interface |
|
Network card chip |
Realtek gigabit network card chip |
|
PS/2 |
1 KB interface and 1 MS interface. |
|
audio frequency |
1*Line out，1*MIC In，1*Line in； 1*F_Audio built-in pin |
|
Audio chip |
Realtek HD audio chip |
|
Usb interface |
IO interface: 2*USB3.0, 6*USB2.0; Built-in pins: 1 set of USB2.0 pins (2 USB2.0 ports can be extended); 1 set of USB3.0 pins (2 USB3.0 ports can be expanded) |
|
PCIE
|
PCIE1/3 :PCIE X16 3.0 slot (from CPU) PCIE2/4:PCIE X1 2.0 slot (from PCH) |
|
Functional pin |
1*FPANEL panel pin; 1*4Pin CPU fan; 2*3Pin+1*4Pin SYS fan; 1*JCMOS pin; 1*TPM pin; 1*COM pin |
|
Power input |
24Pin+8Pin ATX power socket |
|

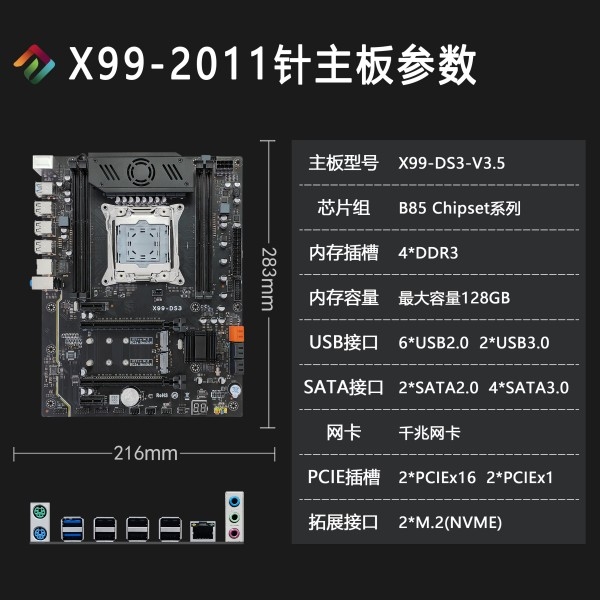

product size |
216 x 283mm, 6-layer PCB |
