CPU |
Intel Celeron J4125 |
||
|
memory |
technology |
Single channel DDR4 |
|
|
|
capacity |
The maximum capacity supports 16GB and the maximum frequency supports 2400MHz. |
|
|
|
Memory slot |
1 x 260Pin DDR4 SO-DIMM(Non-ECC) |
|
|

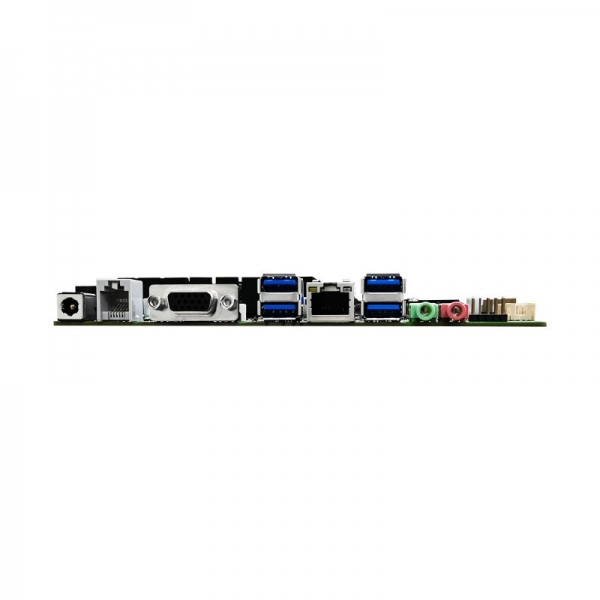

Post I/O |
power source |
1 standard 2.5mm DC12V power socket |
|
|
|
VGA |
Standard DB15 socket, the maximum supported resolution is 2560*1600@60Hz(VGA and JVGA can only be selected). |
|
|
|
Cashier interface |
1 RJ11 cashbox interface |
|
|
|
Ethernet |
1 Realtek Gigabit NIC |
|
|
|
USB port |
3 USB3.0 interfaces and 1 USB2.0 interface. |
|
|
|
Audio |
1 (Line-out, Mic-in) |
|
|
Internal connector |
USB port |
4 USB2.0 interfaces (one FUSB can switch out 2 USB2.0 interfaces) |
|
|
|
LVDS interface |
Support single (dual) channel 18(24) bits, and the maximum resolution can reach 1920*1200@60Hz. |
|
|
|
LVDS1 interface |
Support single (dual) channel with 18(24) bits, and the maximum resolution can reach 1920*1200@60Hz(LVDS1 and HDMI play together, so you can only choose one). |
|
|
|
JVGA interface |
1*12Pin pin, the maximum supported resolution is 2560*1600@60Hz(VGA and JVGA can only be selected). |
|
|
|
JHDMI |
2*8Pin pin, supporting HDMI1.4, maximum resolution: 4096*2160@30Hz (LVDS1 and HDMI are laid together, so you can only choose one). |
|
|
|
serial ata |
1 7Pin SATA interface (and 1 4Pin SATA power supply interface is provided), which supports SATA 3.0 speed. |
|
|
|
MSATA interface |
Support 1 MSATA hard disk. |
|
|
|
serial port |
2 serial ports, supporting RS232/RS485 mode |
|
|
|
FAudio |
1 2*5Pin pin (Mic-in, Line-out) |
|
|
|
power amplifier |
1*4Pin 2.0mm white socket, supporting 2 speakers with 5W2. |
|
|
|
FPANEL |
1 switch control panel |
|
|
|
Fan interface |
2, 1 CPUFan and 1 SYSFan. |
|
|
|
WIFI/4G |
1 WIFI/4G interface |
|
|
|
GPIO |
8-way bidirectional 3.3V |
|
|
|
PWR interface |
1 standard 2x2PIN DC12V power socket |
|
|
Watchdog |
output |
system reset |
|
|
|
space |
Programmable for 1-255 seconds |
|
|
power consumption |
Maximum power |
Standby power consumption: 6.4W Full load power consumption: 58.3W |
|
|
environment |
temperature range |
working environment |
Storage environment |
|
|
|
Temperature:-40 ~ 70℃ Humidity: 5%~95% |
Temperature: -40~85℃ Humidity: 5%~95% |
|
DC power supply |
12V power input |
||
|
Physical size |
measure |
170 mm x 170 mm |
|
